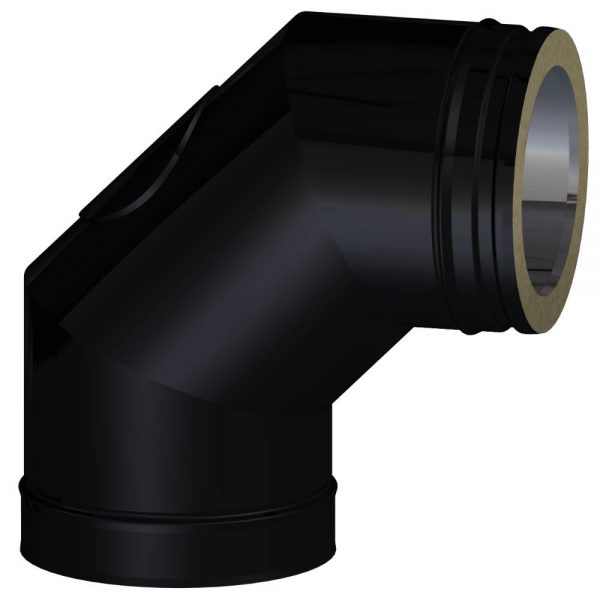

DINAK DWN TWIN WALL INSULATED 90º ELBOW WITH INSPECTION DOOR Ø180

The Dinak DWN 90 degree elbow with inspection door allows for a 90 degree change in direction whilst also providing an inspection hatch for sweeps access and insepction of the flue system. Dinak DWN is powder coated black and suitable for use both internally and externally. Requires a locking band.

Warranty Dinak DW & DW Black should provide many years hassle free service and is warranted for 10 Years (conditions apply)

Standards EN1856-1 T600 N1 D V2 L50040 G60

Fuels Use with gas, diesel, solid fuel, biofuel

Approvals CE & HETAS

Application Dinak DW and DW Black is a twin wall Insulated Flue system which can be used internally or externally. Used for domestic heating, domestic hot water, industrial/commercial heating, biomass boilers, open fires, bakery ovens.

Construction Dinak DW Inside Wall: Stainless Steel AISI 316L-1.4404 Dinak DW Outside Wall: Stainless Steel AISI 304-1.4301 Insulation: Mineral Wool 30mm. Dinak DW Black: Inside Wall: Stainless Steel AIS 316L-1.4404. Outside Wall: Galvanized Steel painted Black – Insulation: 30mm Mineral Wool

Installation Advice We recommend that all installations are carried out by a qualified competent person. Further advice on installation and requirements can be found in our guide download or on document J of the Building regulations
